Specification

StyleAir dryer cartridge
Dimension A 136.0 mm
Dimension B 100.0 mm
Dimension C 111.0 mm
Dimension G M39x1.5-LH
Dimension H 164.0 mm

Description

MANN-FILTER air dryer cartridges dehumidify and clean the compressed air in pneumatic systems, especially in commercial vehicle brake systems. As a result, they reliably prevent moisture accumulation and thus damage to your system.. The silver “Advanced Performance” air dryer cartridge offers optimum drying performance in distribution haulage or mixed operation. Ideal for heavy loads and increased compressed-air requirements. Improved system protection with coalescing filter..

Mann Filter Product

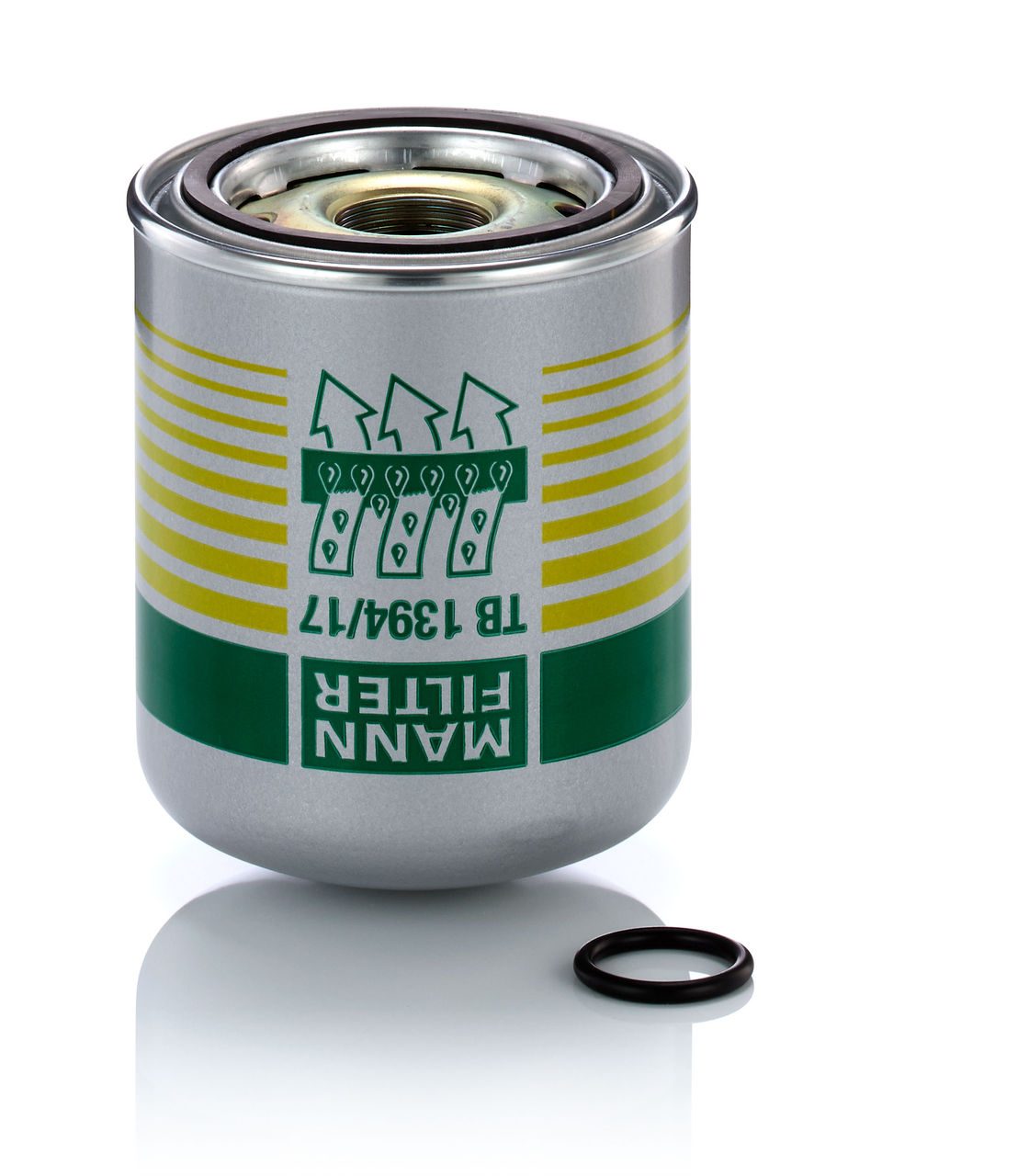

Genuine Mann Filter TB 1394/17 x

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Mann Filter Warranty

Mann Filter Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
Efficiency 2
Style Air Dryer, Spin-On
Outer Diameter
Inner Diameter
Length
Media Type
Flow Direction
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range
