Summary

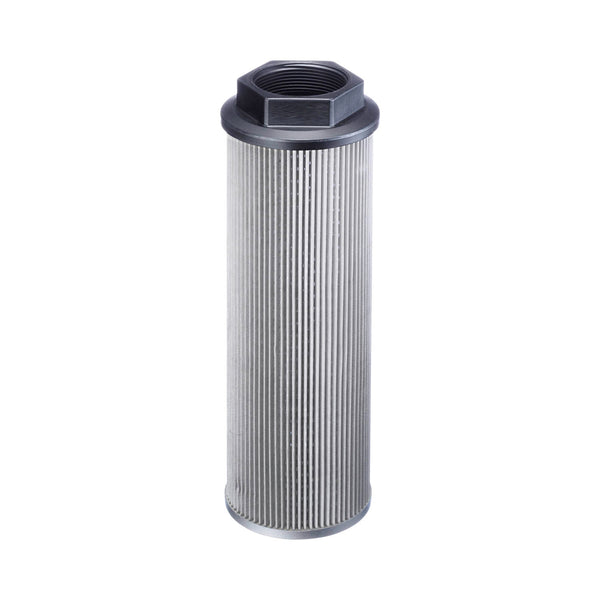

Stauff SUS-050-G08-105-060-P-O Replaces the Stauff SUS050G08105060PO

Stauff SUS050G08105060PO
Representative product image Product image feedback

Stauff SUS-050-G08-105-060-P-O Replaces the Stauff SUS050G08105060PO

SUS-050-G08-105-060-P-O
Stauff
Stauff SUS050G08105060PO
Description

Suction Strainer with Polyamide End Cap Micron Rating: 60 µm without Bypass Thread: 1/2"BSP

Brand: Stauff
Price Matched
€11,95
0.12 kg
8421.99.90
Germany
0.08 kg
8421.99.90
Italy
0.12 kg
8421.99.90
France
Shipping Terms

Description

Suction Strainer with Polyamide End Cap Micron Rating: 60 µm without Bypass Thread: 1/2"BSP

Specification

StyleSuction Strainer
Efficiency 160µ
Outer Diameter 46.0 mm
Length 106.0 mm
Thread1/2" BSP
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 1 BAR
Temperature Range -30 - +100°C

Genuine Product

Find out more
Stauff Brand Logo

Stauff Product

Genuine Stauff SUS-050-G08-105-060-P-O

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Suction Strainer
Outer Diameter 46.0 mm
Inner Diameter
Length 106.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 1/2" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
