Donaldson P167270 Replaces the Mahle P9801D04H3FPM

P9801D04H3FPM
Representative product image Product image feedback

Donaldson P167270 Replaces the Mahle P9801D04H3FPM

P167270
Donaldson
Mahle P9801D04H3FPM
Description

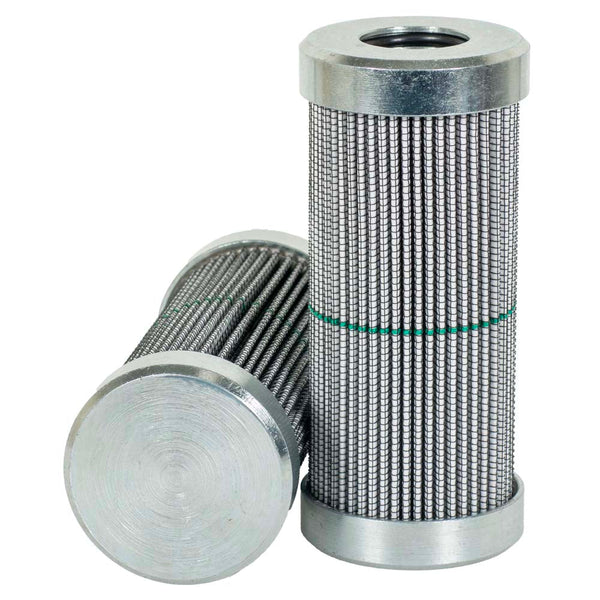

Genuine Donaldson P167270 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Brand: Donaldson
Price Matched
€96,95
5
0.31 kg
8421.29.80.90
United States
0.41 kg
8421.99.90
United Kingdom
0.91 kg
8421.99.90
Italy
Shipping Terms

Description

Genuine Donaldson P167270 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StylePressure Filter
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 114.0 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 210 BAR
Seal MaterialViton
Temperature Range -25 - +120°C

Approved Product

Find out more
Mahle Brand Logo

Same Fit-Form & Function

As the Genuine Mahle P9801D04H3FPM

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 114.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
