Stauff NR-100-E-10-B/4 Replaces the Stauff NR100E10B
Stauff NR-100-E-10-B/4 Replaces the Stauff NR100E10B
NR-100-E-10-B/4
Stauff
Stauff NR100E10B
Stauff
Stauff NR100E10B
Description

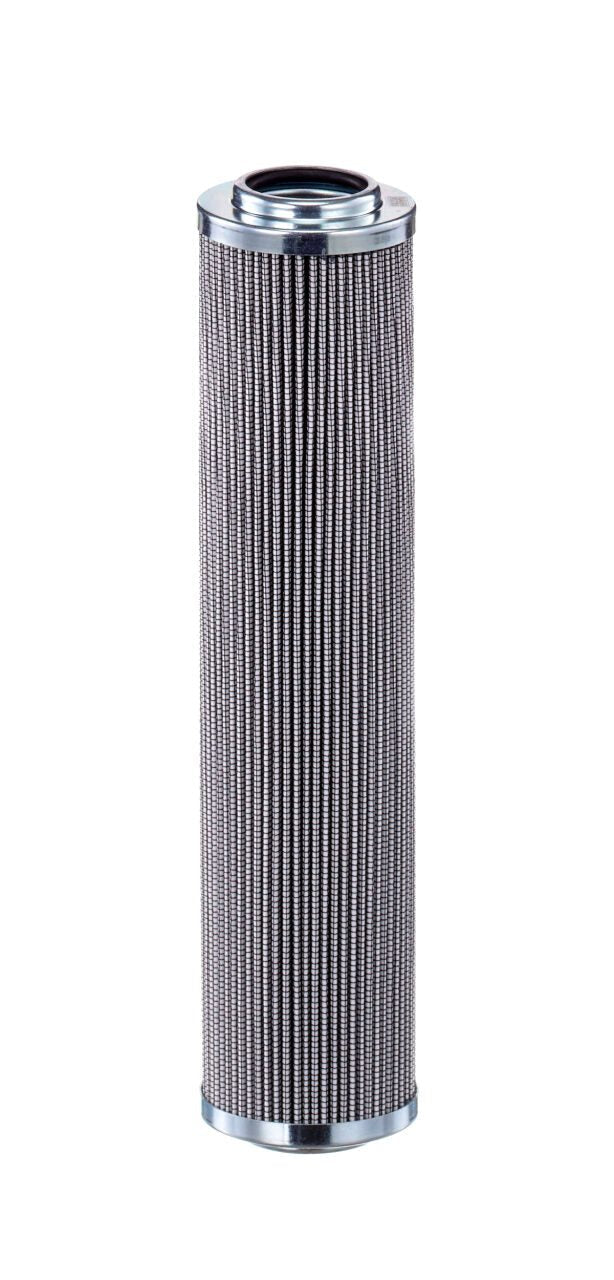

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 58 Inner Diameter (mm): 32,2 Length (mm): 249 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
€131,95
Unit price
per
0.36 kg
8421.99.90
Germany
0.53 kg
8421.99.90
France
0.37 kg
8421.29.80.90
Italy
0.3 kg
8421.99.90
Italy
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 58 Inner Diameter (mm): 32,2 Length (mm): 249 Sealing: NBR, β ratio >200Specification
| Style | DIN Return Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 58 mm |
| Inner Diameter | 32.2 mm |
| Length | 249 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 10 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
