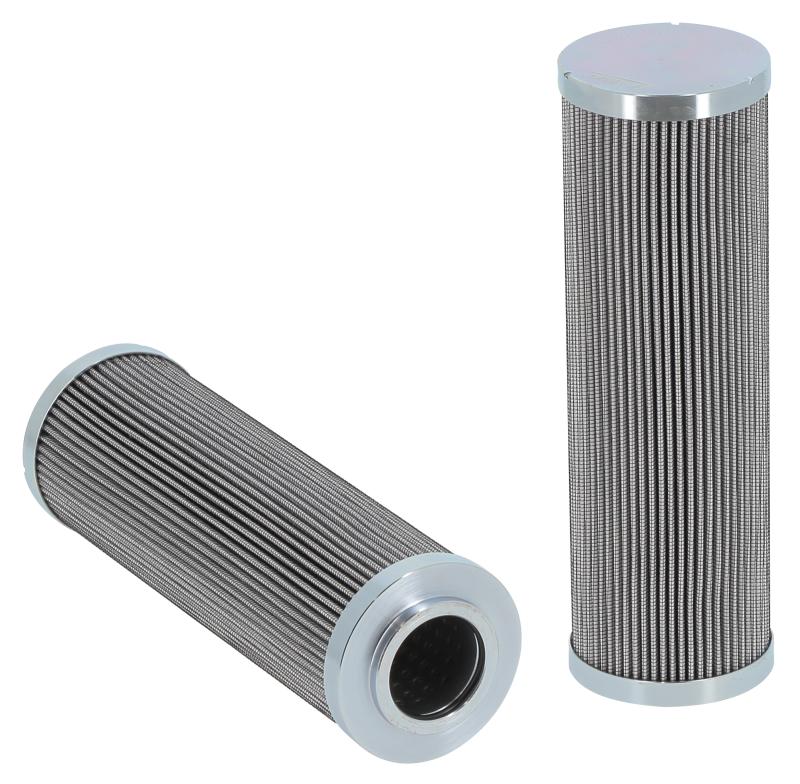

Stauff NL-250-F-10-B/4 Replacement DIN Pressure Filter
Stauff NL-250-F-10-B/4 Replacement DIN Pressure Filter
NL-250-F-10-B/4
Stauff
Stauff
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 249 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
€418,95
Unit price
per
1.46 kg
8421.99.90
Germany
1.44 kg
8421.99.90
France
1.38 kg
8421.99.90
Italy
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 249 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 78.0 mm |
| Inner Diameter | 40.2 mm |
| Length | 248.0 mm |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 210 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
