Summary

Fleetguard HF30346 Alternative to the Fleetguard HF7062

HF7062
HF7062

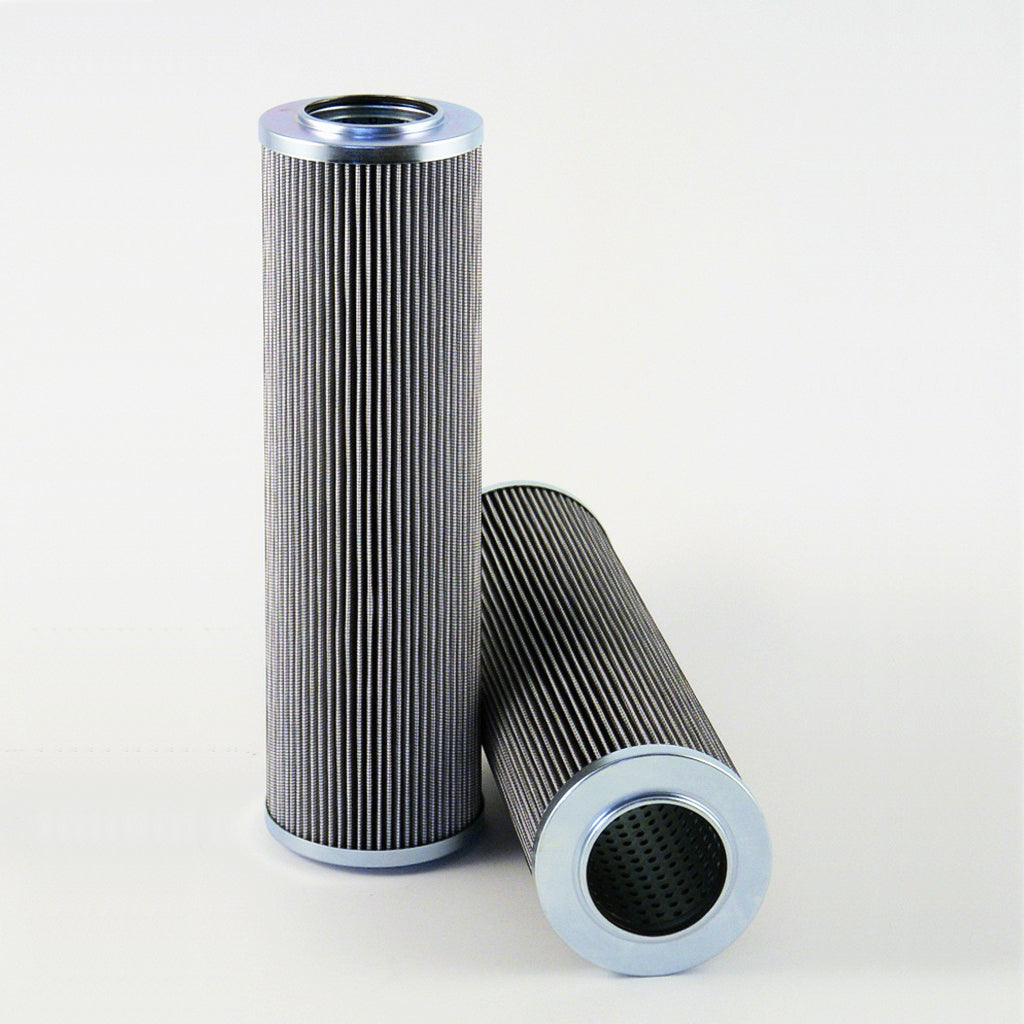

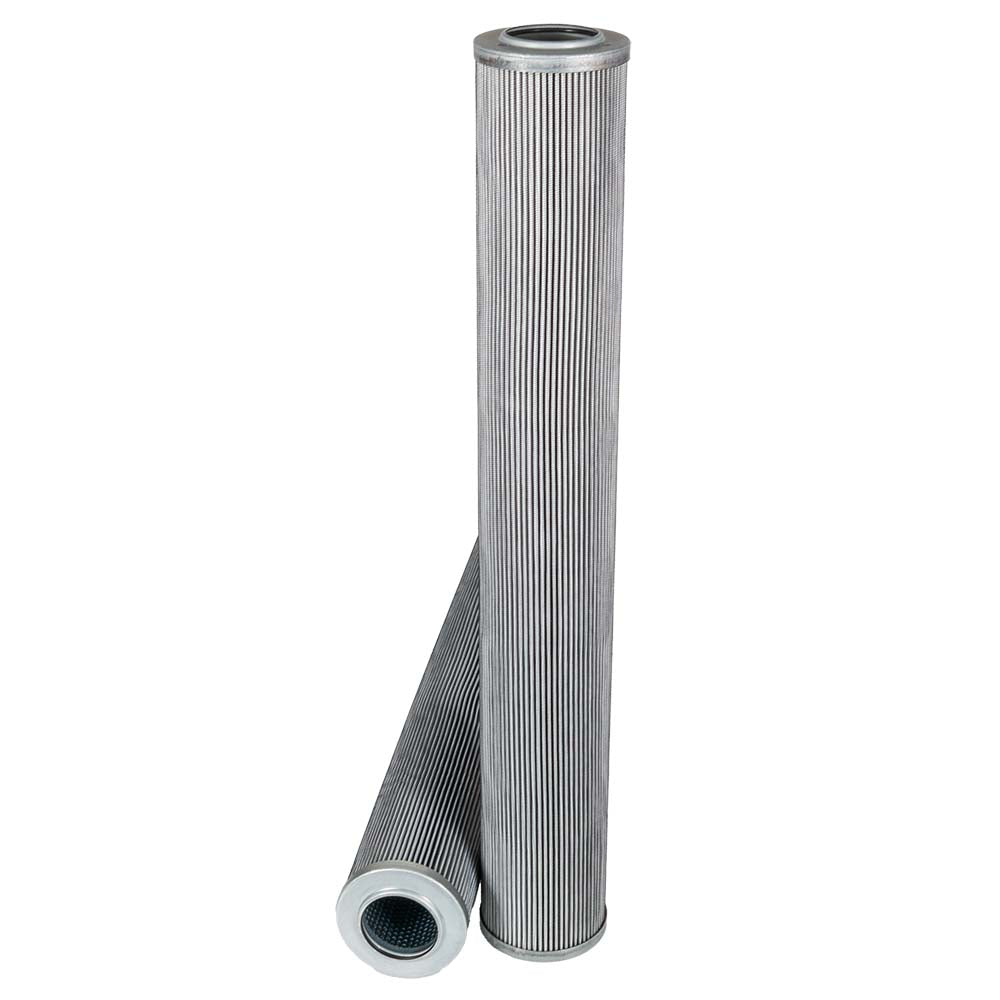

Representative product image Product image feedback

Fleetguard HF30346 Hydraulic Filters | Alternative to the Fleetguard HF7062

Brand: Fleetguard
Price Match
€341,95
4.08 kg
0.0219 m³
48 pcs
8421.23.00
8.38 kg
0.0105 m³
48 pcs
United Kingdom
8421.99.90
3.81 kg
0.0105 m³
48 pcs
Italy
8421.99.90
2.76 kg
0.0125 m³
48 pcs
United States
8421.29.80.90
3.66 kg
0.0105 m³
48 pcs
France
8421.99.90
Shipping Terms

Description

Fleetguard® HF30346 premium hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 96.0 mm
Inner Diameter 56.5 mm
Length 986.0 mm
Δ Collapse Pressure 25 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C

Description

Fleetguard® HF30346 premium hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Fleetguard Product

Genuine Fleetguard HF30346

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 96.0 mm
Inner Diameter 56.5 mm
Length 986.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 25 BAR
Seal Nitrile
Temperature Range -30 - +100°C
