Donaldson P171816 Replaces the Donaldson CRS90.03

Donaldson P171816
Donaldson P171816
Watch video
▶
Representative product image Product image feedback

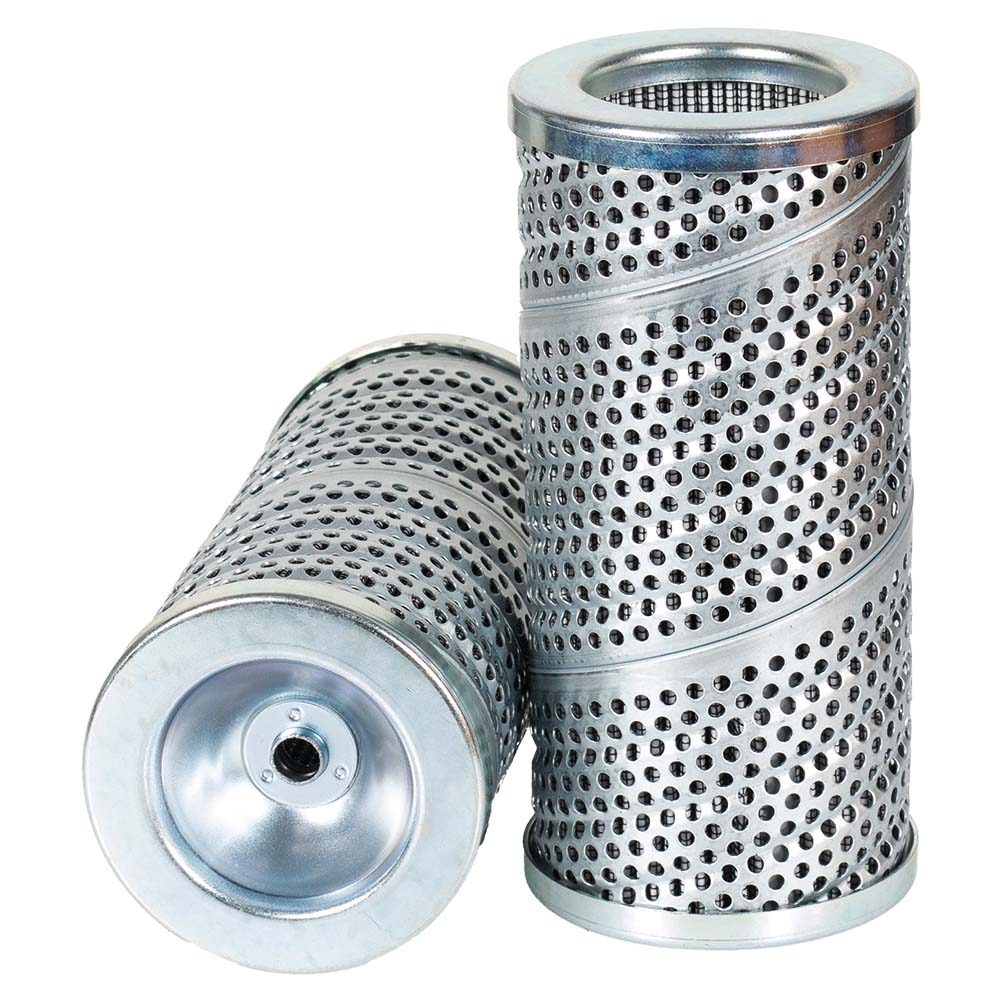

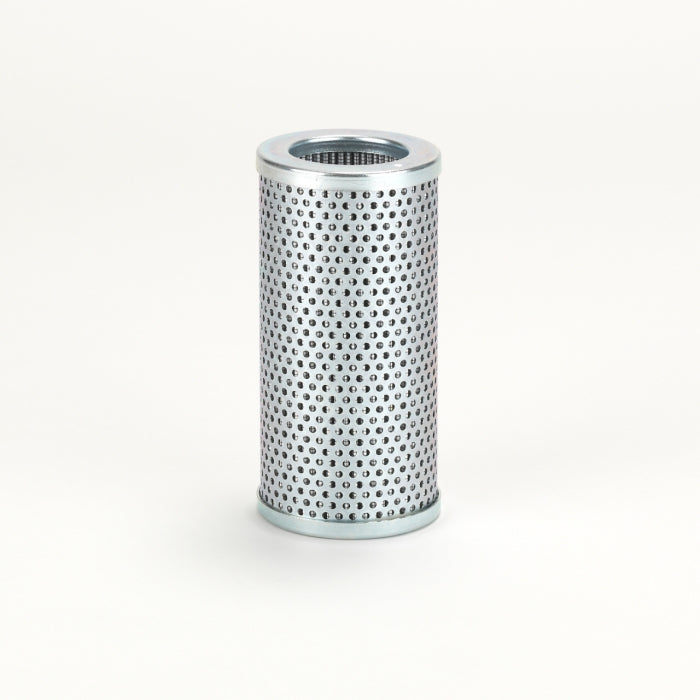

Donaldson P171816 Hydraulic Filter, Cartridge | Replaces the Donaldson CRS90.03

Brand: Donaldson
Description

Genuine Donaldson P171816 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Price Match
€26,95
0.29 kg
0.0018 m³
409 pcs
Italy
8421.29.80.90
0.31 kg
0.0008 m³
409 pcs
Italy
8421.99.90
0.31 kg
409 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

Genuine Donaldson P171816 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 72.0 mm
Inner Diameter 45.0 mm
Length 150.0 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Donaldson Brand Logo

Donaldson Product

Genuine Donaldson P171816

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Return Filter
Outer Diameter 72.0 mm
Inner Diameter 45.0 mm
Length 150.0 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
