Summary

MICROFIT MFHLP30484 Replaces the Hydac 02061733

MICROFIT MFHLP30484
Representative product image Product image feedback

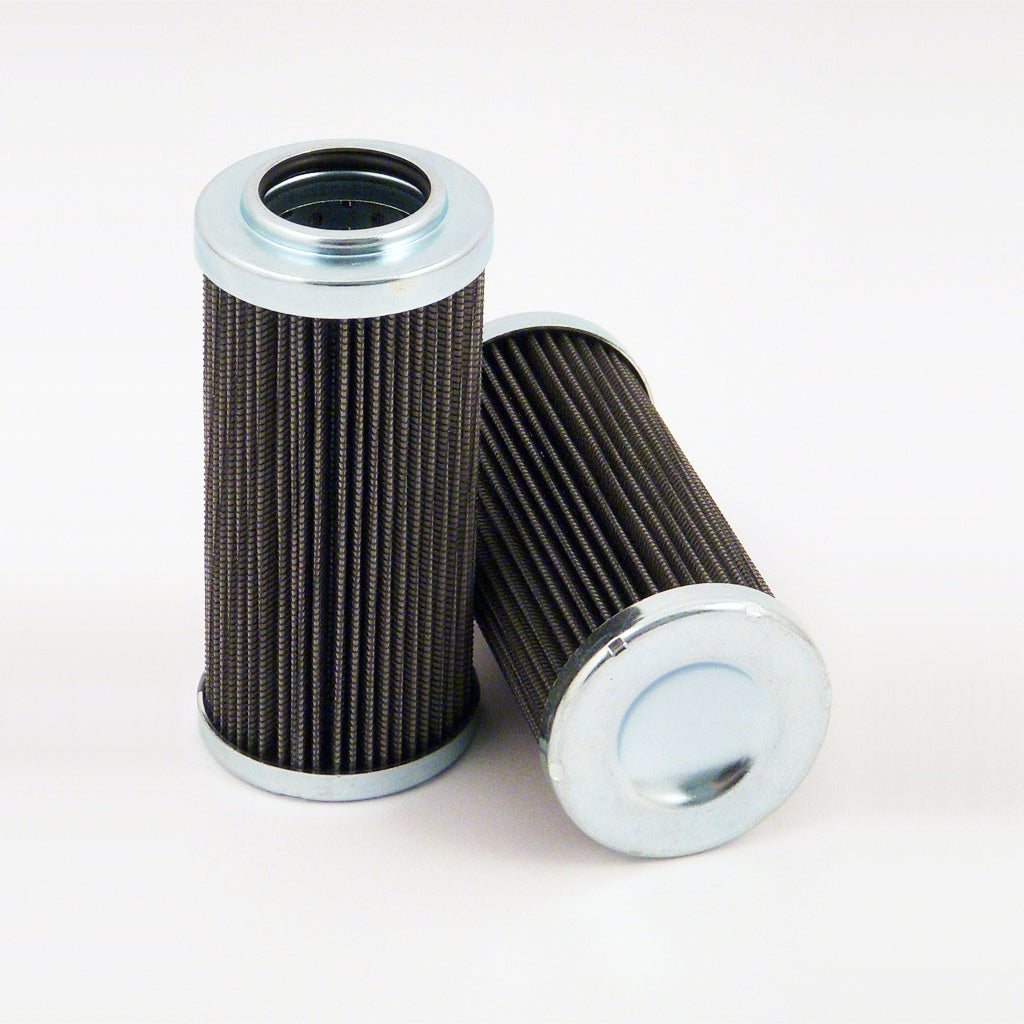

MICROFIT® UltraGen III MFHLP30484 Replaces the Hydac 02061733

MFHLP30484
MICROFIT
Hydac 02061733
Description

The MICROFIT® UltraGen III MFHLP30484 is the MICROFIT® approved replacement to the Hydac 02061733. Engineered and manufactured in Great Britain the MFHLP30484

Brand: MICROFIT
Price Matched
€95,95
0.66 kg
8421.99.90
United Kingdom
0.3 kg
8421.99.90
Italy
0.3 kg
8421.99.90
France
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30484 is the MICROFIT® approved replacement to the Hydac 02061733. Engineered and manufactured in Great Britain the MFHLP30484

Specification

StylePressure Filter
Efficiency 125µ
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 127.0 mm
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 20 BAR
Seal MaterialNitrile
Temperature Range -30 - +100°C

Approved Product

Find out more
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 02061733

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 127.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
